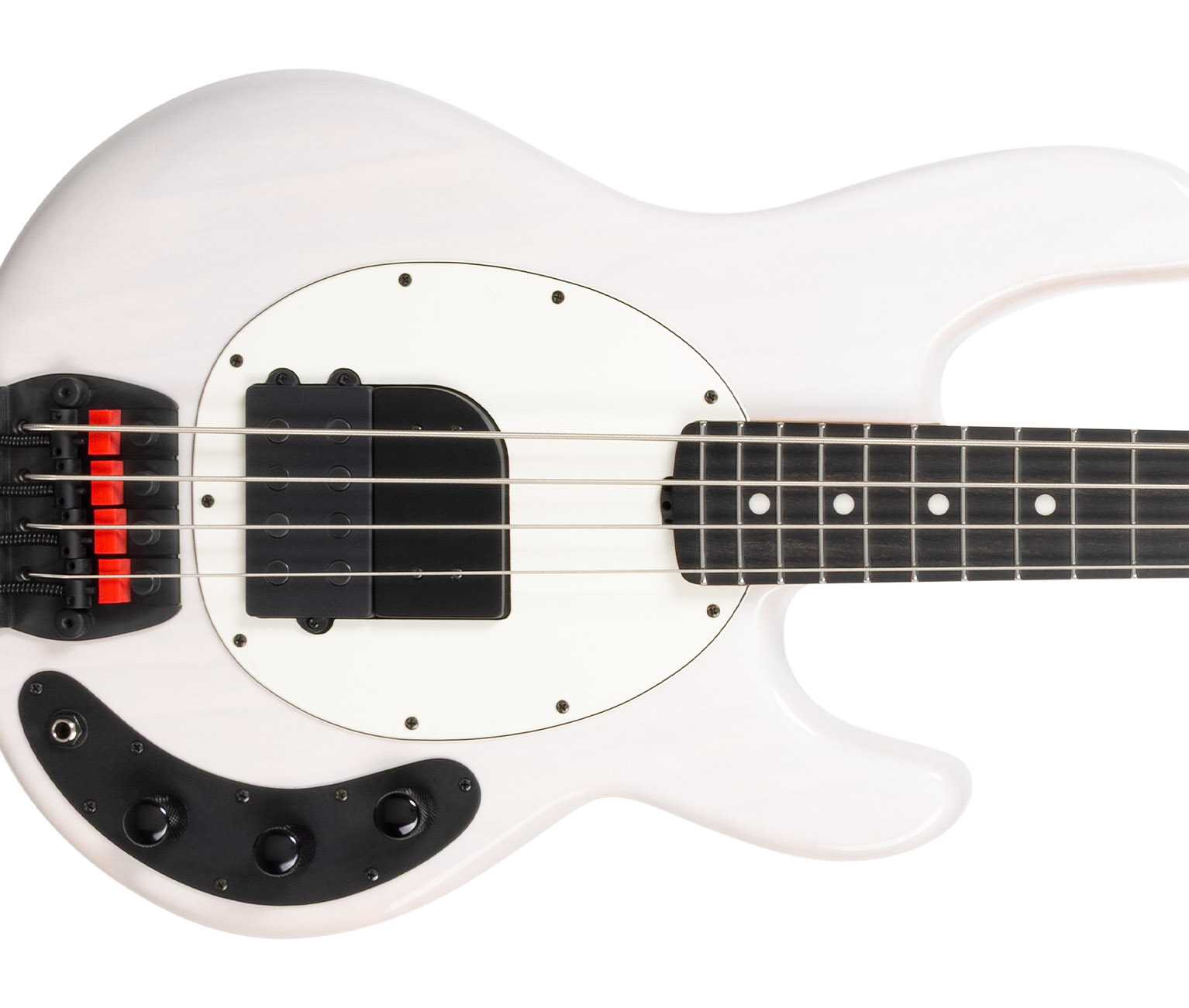

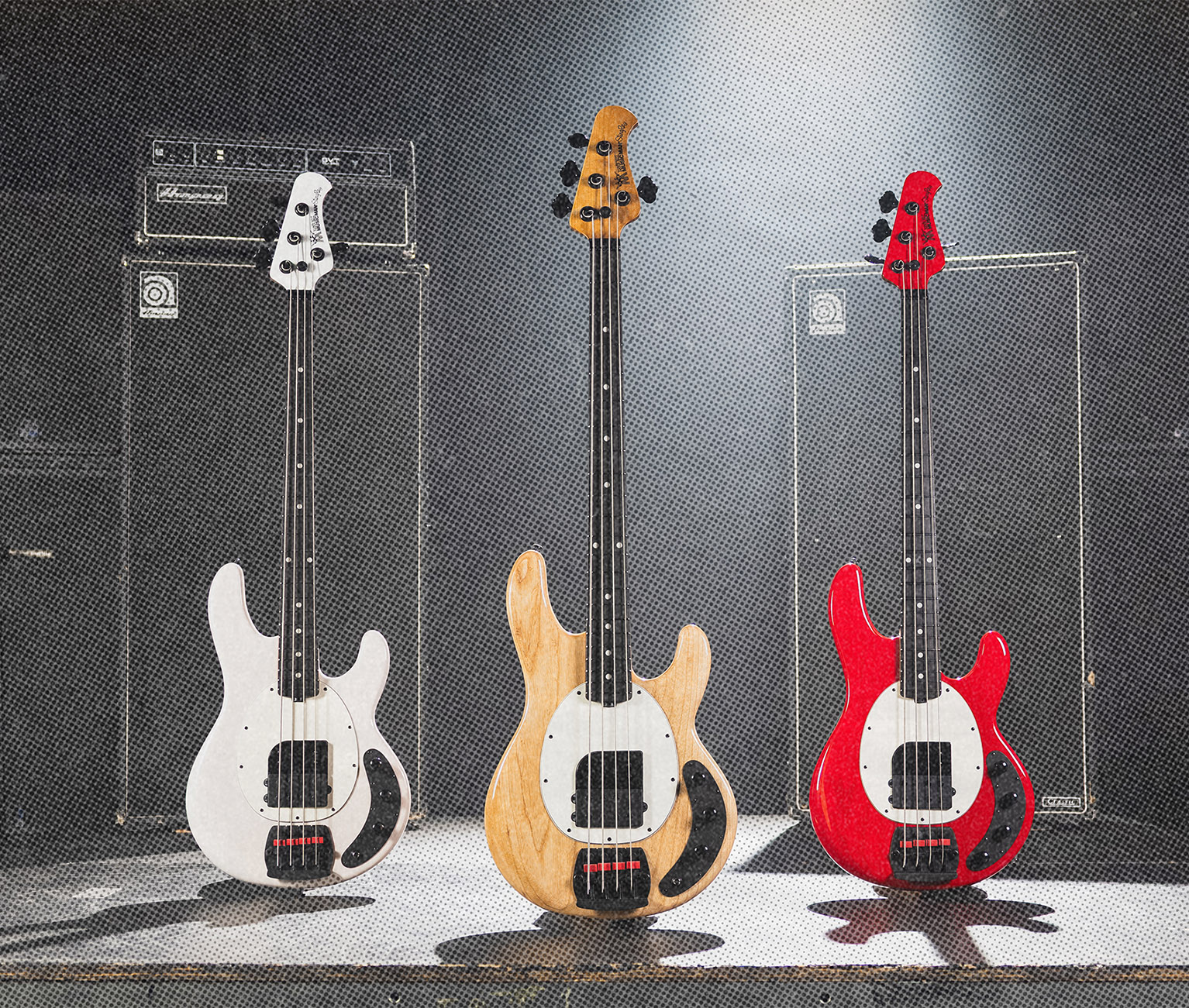

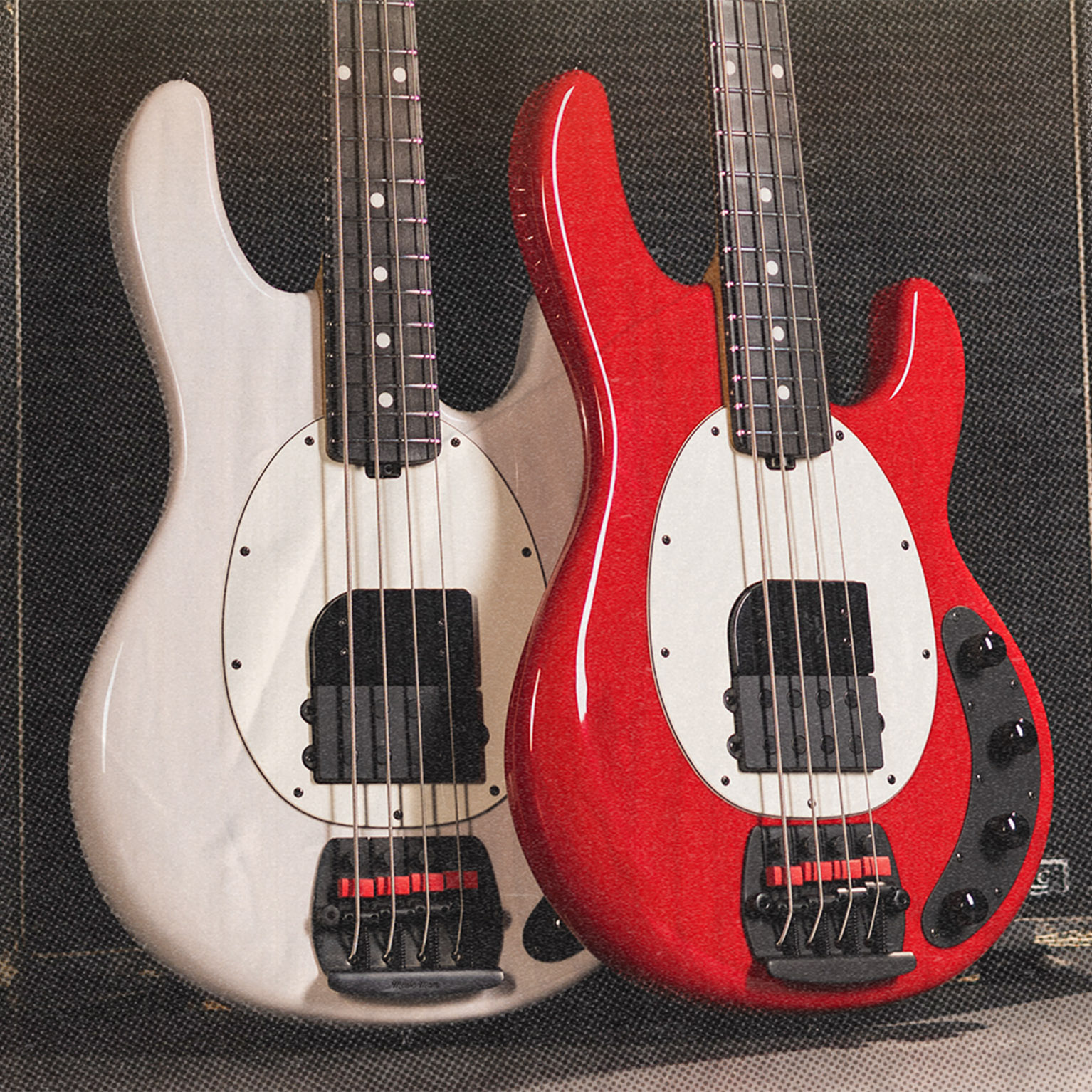

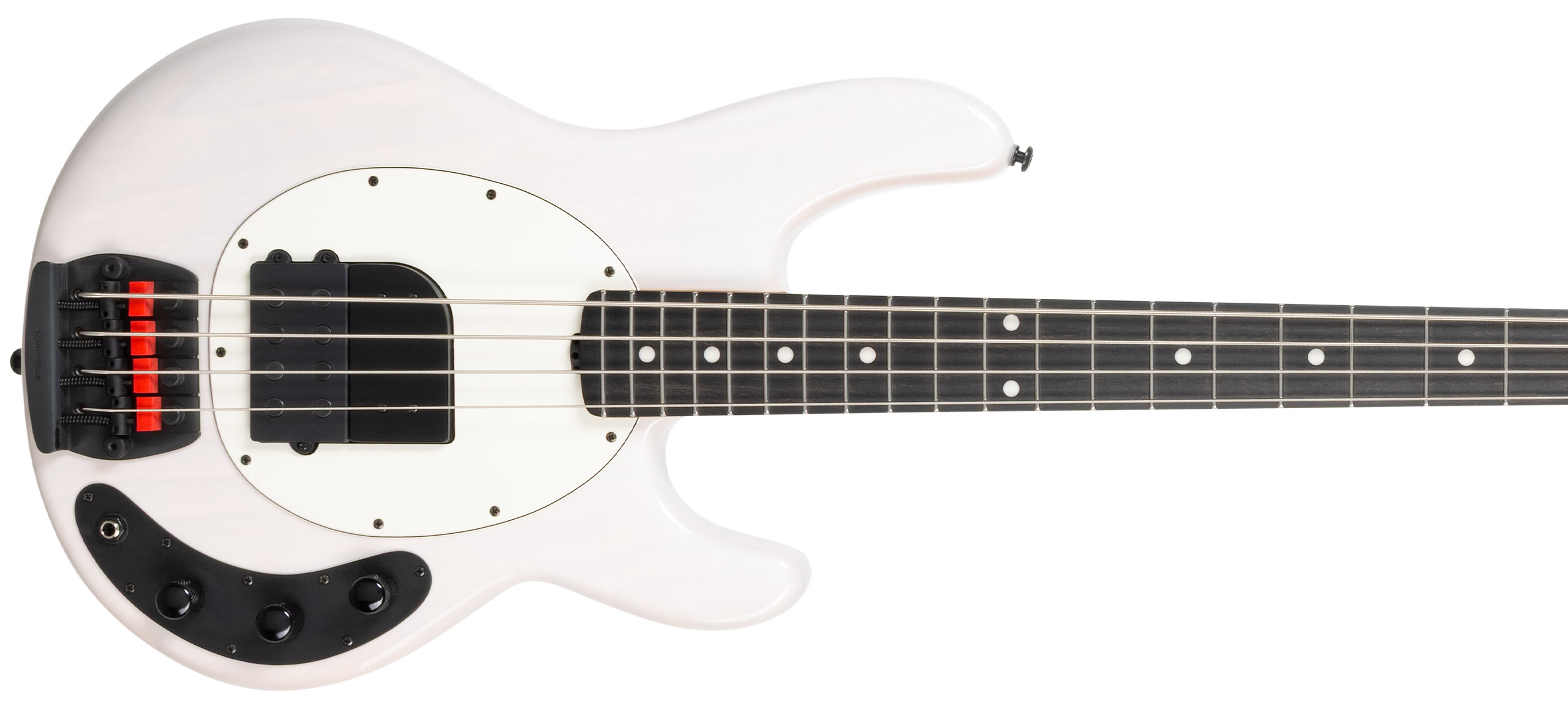

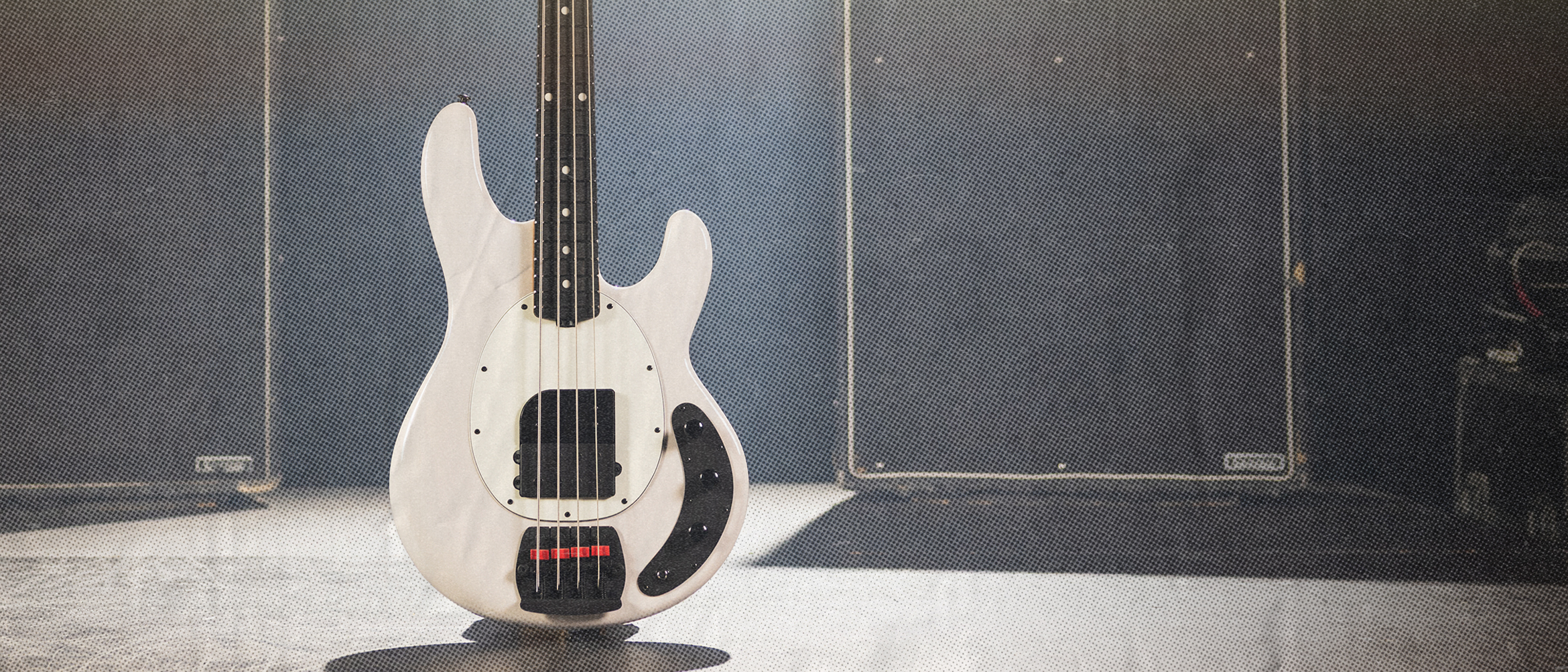

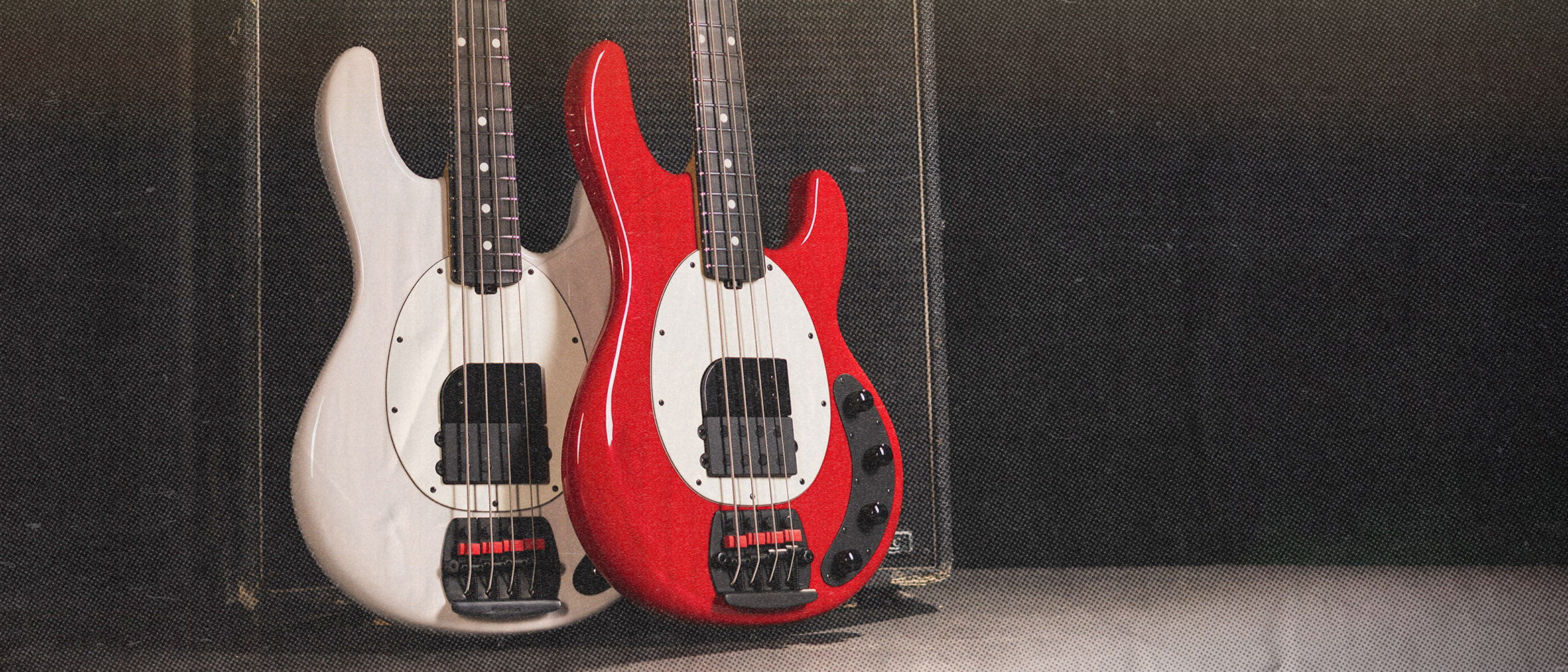

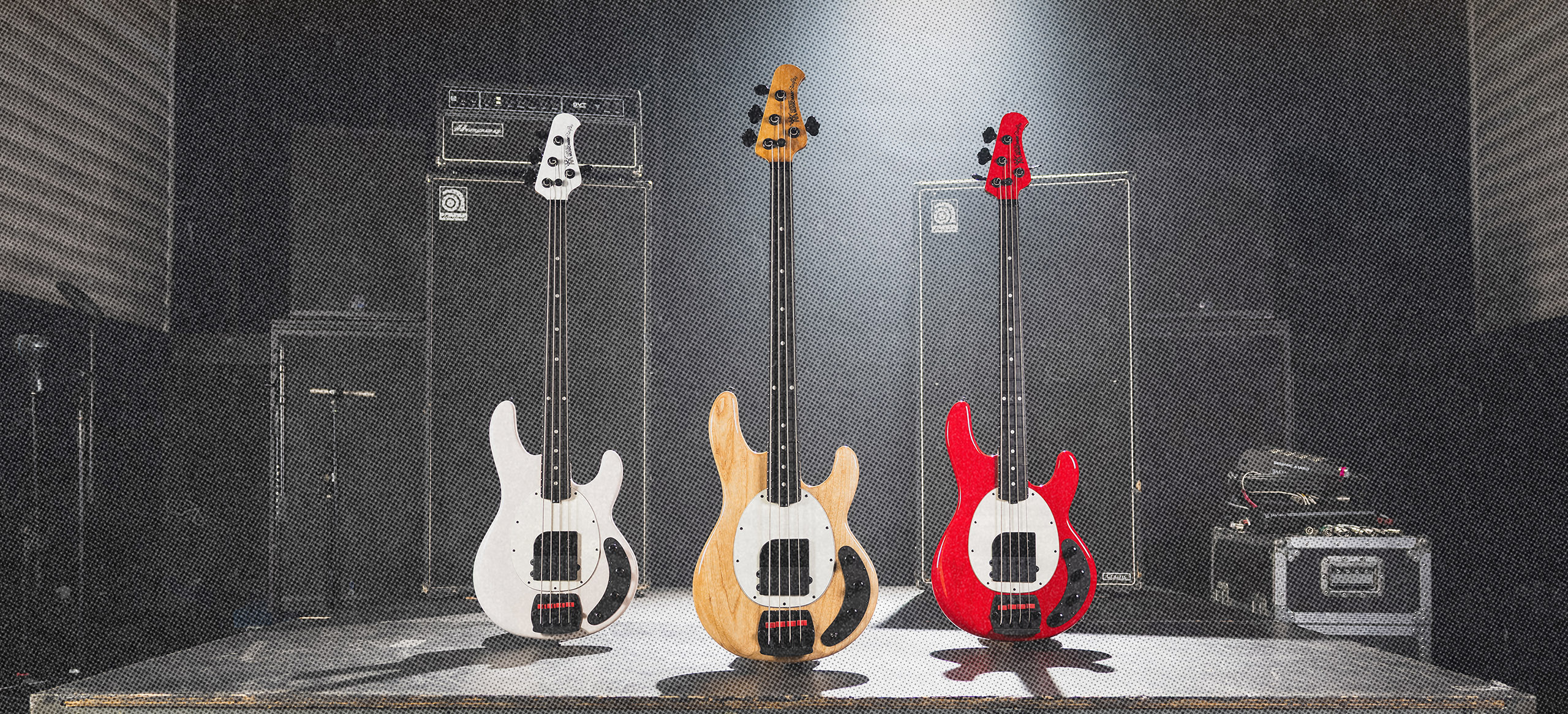

The Tim Commerford Artist Series StingRay Bass was developed in close collaboration with legendary bassist Tim Commerford of Rage Against the Machine, Audioslave, and 7D7D, combining Ernie Ball Music Man craftsmanship with Tim’s performance-driven design preferences. Built with a resonant ash body, roasted maple neck, and ebony fretboard, this StingRay delivers a bold, balanced tone. The passive model, finished in both FIght Night White and Natural, delivers raw punch and dynamic feel. This bass includes Tim’s custom height-adjustable finger ramp, a string-through-body bridge with red mute pads, and black hardware for a sleek, road-ready look. Now available as part of the full Music Man lineup.

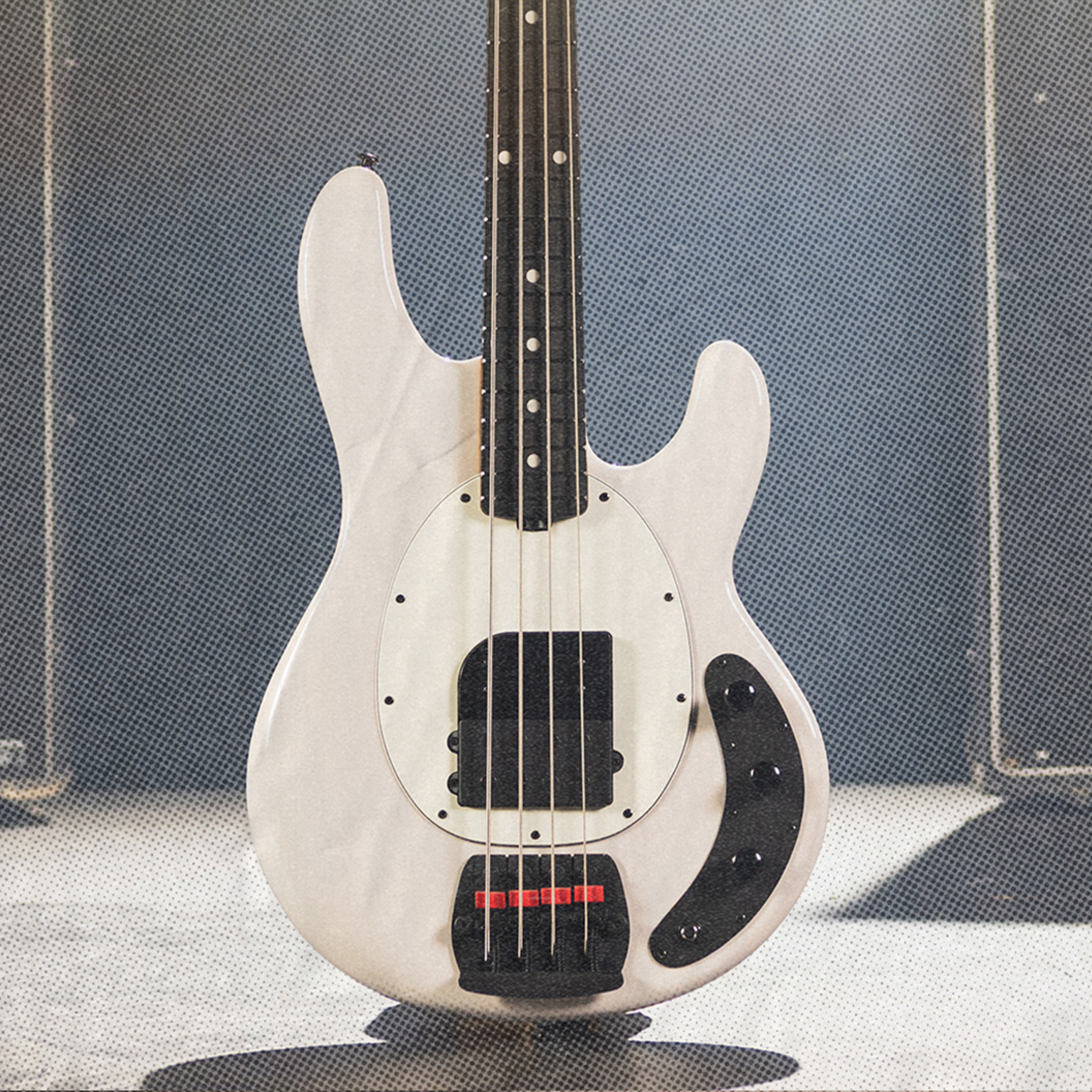

Fight Night White
Natural Gloss
The Tim Commerford Passive bass comes with a 3 position parallel / single-coil / series pickup rotary switch and push volume control with passive gain boost.

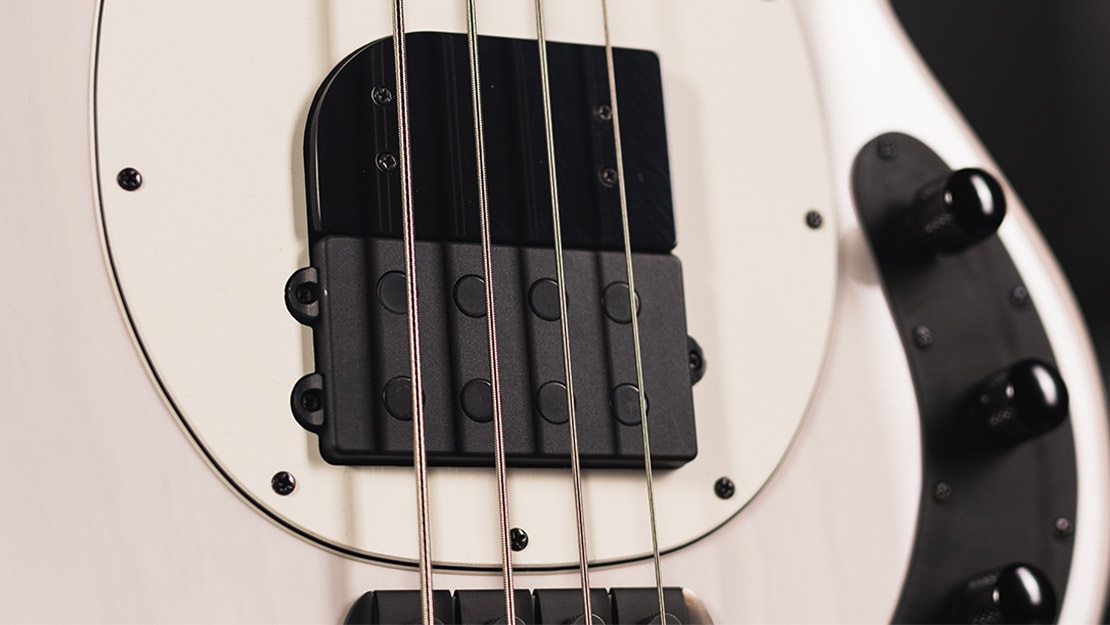

The StingRay humbucking pickup features powerful neodymium magnets, bringing you more output and a wider range of sounds. A beveled pickup cover thumb rest and adjustable finger ramp allow a more comfortable fingerstyle hand position playing above or adjacent to the pickup.

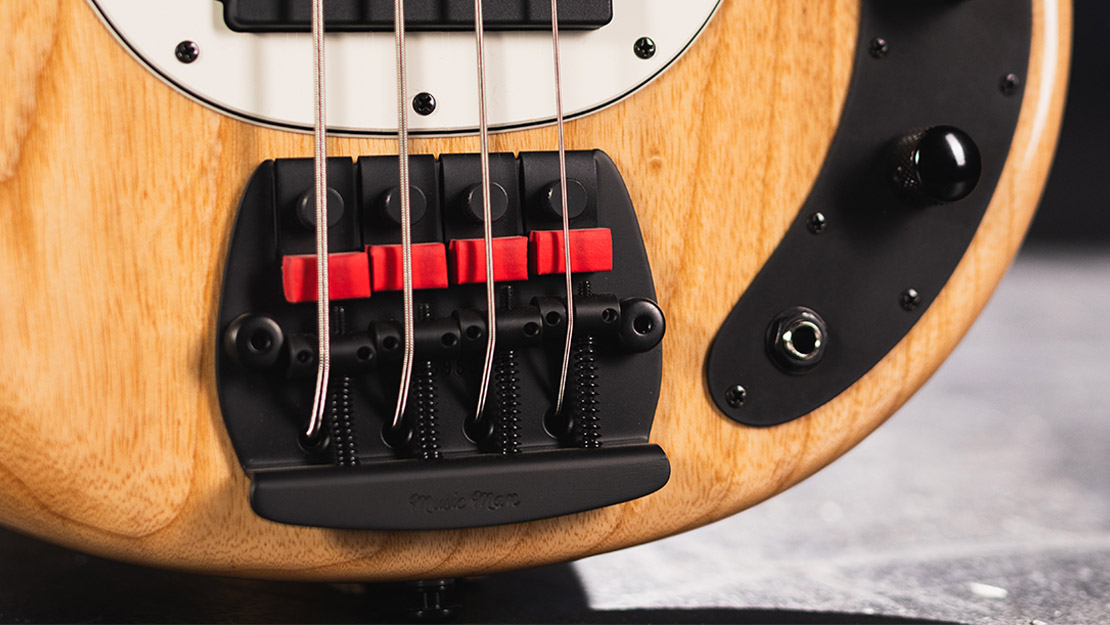

The classic string thru bridge is fitted with individual red mute pads allowing you to customize the degree of string dampening to suit your tastes.
All Tim Commerford edition models include popular vintage appointments with updated modern refinements. Oil and wax maple and roasted maple necks are standard, along with a compensated nut and sculpted 5-bolt neck join for full access to all 22 stainless steel frets.
| Specifications | Tim Commerford Passive Full-Scale |
|---|---|
| Model | Tim Commerford Passive Full-Scale |
| Size | 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long) |
| Body Wood | Ash |
| Body Finish | Gloss polyester |
| Body Colors | Fight Night White, Natural Gloss |
| Bridge | Music Man® black chrome plated, strings-thru-the-body & hardened steel bridge plate with vintage black chrome plated steel saddles and adjustable mute pads |
| Pickguard | Parchment |
| Scale Length | 34" (86.4 cm) |
| Neck Radius | 11" (27.9 cm) |
| Headstock Size | Only 8-3/4" (22.2 cm) long |
| Frets | 22 - High profile, wide - stainless steel |
| Neck Width | 1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at the last fret |
| Neck Wood | Select roasted maple neck |
| Fingerboard | Ebony |
| Fret Markers | 5/16" Dot Inlay |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Neck Colors | Matching headstock |
| Tuning Machines | Custom Music Man, lightweight with tapered string posts and ergonomic clover design |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolt, sculpted neck joint |
| Electronic Shielding | Black plated aluminum control cover |
| Controls | Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap |
| Switching | 3-way rotary pickup selector |
| Pickups | Single Music Man humbucking pickup- neodymium magnets |
| Strings | 50w-70w-85w-105w (Regular Slinky Bass #2832) |
